Suitcases, dogs, avocados and coffins: What’s really traveling in the cargo hold?

Aug 22, 2020

This post contains references to products from one or more of our advertisers. We may receive compensation when you click on links to those products. Terms apply to the offers listed on this page. For an explanation of our Advertising Policy, visit this page.

Most commercial airliners are designed to transport hundreds of passengers around the world in varying levels of comfort. If you’re fortunate enough to be sat up the front, you’ll have the luxury of a fully flat bed and delicious linen to sleep the flight away. Sat farther back is a little less glamorous, having to make do with a scratchy blanket and your seat mate’s morning breath.

However, have you ever paused to think about what is situated underneath your feet as you have to stand up for the fifteenth time to allow the window seat passenger out to stretch their legs?

You may think it’s just your suitcase, haphazardly thrown onto a pile of other bags. The reality is quite different.

ULDs, containers and pallets

On smaller aircraft types, baggage is loaded by hand directly into the cargo holds. They are stacked up and secured by netting to stop them from moving around. However, on a larger aircraft such as the 787 Dreamliner, there could be hundreds of bags plus an enormous variety of freight.

To make the loading and unloading process quicker and easier, ground staff use unit load devices (ULDs) such as containers and pallets.

Baggage containers

Containers are primarily used to load passenger baggage and are a standard shape and size to fit a range of aircraft. For example, an LD3 container will fit in A330, A340, A350, A380, B767, B777 and B787 aircraft types. This gives airlines great flexibility when operating a fleet of different aircraft.

As bags arrive from the check-in desks to the loading zone under the terminal building, ground staff begin to load them into the containers. Even with a container, the bags are not thrown in randomly. They are stacked like a giant 3D jigsaw puzzle to ensure that the weight is evenly distributed and so that the bags don’t shift position in flight.

Read more: How do pilots deal with an engine failure on takeoff?

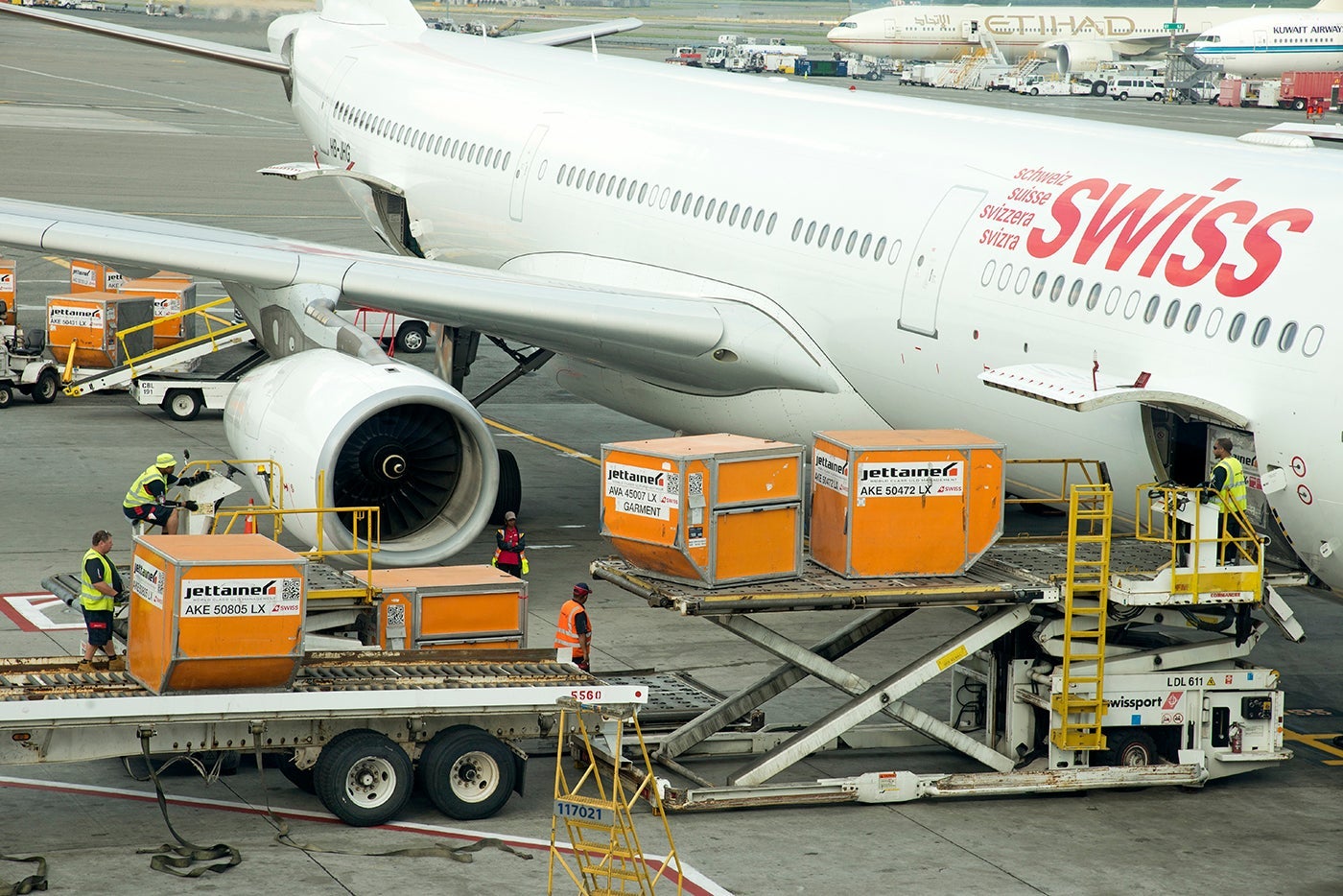

Cargo handling Containers being stowed in the hold of a Airbus A330 aircraft at JFK USA. (Photo by: Education Images/UIG via Getty Images)
Containers being stowed in the hold of an A330 aircraft at JFK in the U.S. (Photo by Education Images/UIG via Getty Images)

As each bag is loaded, the tag is scanned so that a record is kept of which bag is in which container. Should a passenger fail to make it to the gate on time and they are offloaded from the flight, their baggage must also be removed.

Instead of searching through every container for the bags, the ground staff can look at the log and see in which container the bags have been loaded. It’s then a question of accessing the correct container and removing the bags.

This process saves time, allowing the loading process to begin even before the aircraft has arrived and then reducing lost time in the event of baggage offload.

Freight pallets

Freight comes in all shapes and sizes so it’s not always possible to load it into baggage containers. As a result, freight tends to be loaded on pallets, which can then be put into the aircraft in the same fashion as the containers.

The versatility of the freight pallets enables them to carry all sorts of goods. Avocados, fresh-cut flowers, salmon, live eels, car engines, lawn mowers. The list is almost endless. Aircraft sometimes even carry human remains when a deceased person needs to be reunited with family in another country.

Cargo pallets being loaded into an aircraft (Getty Images 121637249)
Cargo pallets being loaded into an aircraft. (Photo by FSTOPLIGHT/Getty Images)

Cargo compartments

Forward, aft and bulk

The Boeing 787 Dreamliner has three cargo compartments — forward, aft and bulk. The doors for the forward and aft holds are located on the right-hand side of the aircraft. However, the door to the bulk cargo hold is on the left hand side of the aircraft. This configuration is designed to allow maximum access to the aircraft whilst it is being serviced on the ground.

When designing an aircraft, manufacturers spend a great deal of time working out how it will be serviced whilst on the ground. They plan the vital access points, such as boarding doors, cargo doors and water filling points so that they don’t interfere with each other.

The basic principle is that passenger boarding/disembarking and refueling are done on the left hand side, and all other ground services, such as catering and baggage and cargo loading is done on the right-hand side. Except for the bulk cargo hold door.

If this door was on the right-hand side, the rear galley (accessed by the aft right cabin door) would not be able to be serviced whilst the aft cargo hold door was in use. By placing the door on the left hand side means that both can be in use at the same time.

Accurate loading

Loading the ULDs is not just a question of shoving them in and closing the door. An aircraft is like a seesaw and the weight must be tactically distributed to allow it to fly safely. Too much weight at the front and it will struggle to take off. Too much weight at the back and it could tip up onto its tail.

Before each flight, the operations department carefully calculates which ULDs must go where. This provides the ideal balance for the aircraft not only for takeoff, but also during flight. This information is this provided to the pilots in the form of the load sheet. Before departure, the captain must sign this document to signal that they are happy with how the aircraft has been loaded.

As a result, the ULDs must be moved to exact spots within the cargo holds and this is done with the assistance of powered wheels and bearings in the floor of the hold.

Using a small joystick, the loader is able to move the ULD off the loading device and into the aircraft hold. From here it is rolled to its correct position before being locked into place.

Pets

The forward and aft cargo compartments are ideal for bigger items which can be secured to ULDs but what about smaller items?

The bulk hold caters for items of cargo which may need a little more care so this is where we carry pets when they fly with us. They are secured inside their travel crate which is then carefully loaded into the bulk cargo compartment.

Read more: Your next flight could be a pilot’s final test before making captain

Dog wait to be loaded into the bulk hold of an aircraft (Image Getty Images 164851063)

The aircraft’s air conditioning system keeps the temperature the same as in the cabin and lights can be left on so that the pets don’t have to be left in the darkness for hours on end. The travel crate also has enough water to ensure that the animals are kept well hydrated during the journey.

Forward cargo compartment air conditioning

The Boeing 787 Dreamliner is unique in that it can chill the forward cargo compartment to maintain an exact temperature between 39 degrees Fahrenheit and 80 degrees Fahrenheit. This enables airlines to carry a whole range of cargo such as perishable and live goods, but also specialist freight, which needs to be kept at a low temperature, such as vaccines.

Vaccines are incredibly temperature sensitive and need to be kept between 35 degrees Fahrenheit and 46 degrees Fahrenheit from the point of manufacture, all the way through to being administered to the patient. Even the smallest of temperature excursions along the transport chain could result in decreased effectiveness of the vaccine.

According to the World Health Organization, vaccines for influenza are some of the most sensitive to temperature excursions, particularly to heat. Getting too warm during the transportation process and the whole batch could become void.

Read more: Can you hear me now: How pilots communicate with ATC while 35,000 feet in the air

The forward cargo compartment air conditioning set to 6 degrees Celsius and indicated an actual temperature of degrees Celsius. (Image by Charlie Page/The Points Guy)

As a result, manufacturers need a reliable logistical set up which will ensure that the drugs reach the patient at the required temperature. This isn’t a problem for short-range travel where a refrigerated truck can be used, but when the journey is thousands of miles and time is of the essence, air transport is the only option.

When leaving the manufacturing plant, vaccines are packed in a specialist box along with a number of coolant packs. When they are loaded into the aircraft’s cargo compartment, the pilots are informed by means of a notice to the captain — the NOTOC.

This informs us of the temperature to which we must set the forward cargo hold. When the door closes, the air conditioning system quickly chills the hold to the desired temperature and maintains this for the entirety of the flight.

The FCAC is also used for other temperature-sensitive items such as fish and fresh-cut flowers. By keeping the cargo compartment chilled, we ensure that the produce arrives as fresh at the destination as it did at the start of the journey.

However, it’s not always the cold that is needed. Some special cargo requires the FAC to be at a warmer temperature. carrying live insects such as locusts requires a much warmer temperature of around 75 degrees Fahrenheit.

Fire protection

The cargo holds also have a sophisticated system of fire protection. Depending on the variant of the 787, there are a number of smoke detectors in the cargo compartments. The -9 has more than the -8, and the -10 has more than the -9. It’s directly proportional to the size of the aircraft.

Like with the engine fire detection, two cargo compartment smoke detectors must be activated for the flight deck alarm to be set off.

In the flight deck, the indications of smoke in the cargo compartment are very similar to that of an engine fire. The master warning light and bell are activated and the EICAS message is illuminated.

The cargo hold of an airplane (Image by Katie Gente/TPG)
The cargo compartments have fire suppression to deal with any in-flight fires. (Photo by Katie Genter/The Points Guy)

Depending on the ETOPS certification of the aircraft (how far it can fly from the nearest usable airport), there are a number of fire extinguisher bottles available. Most 787s are certified for ETOPS 180 (180 minutes) and will have five extinguisher bottles fitted to cover this time period. With higher ETOPS rated aircraft, such as ETOPS 330 (330 minutes) as some 787s are rated, more extinguisher bottles are required to cover this longer time span.

If a CARGO FIRE warning is activated in flight, the system automatically discharges two extinguisher bottles into the relevant compartment. After 15 minutes, the remaining bottles are discharged, but at a slower rate.

The pilots can also activate this system by pressing the CARGO FIRE DISCHARGE switch in the flight deck.

Bottom line

There’s far more going on under your feet on an airliner than you may think. The cargo compartments are a versatile space which can be used for anything from car engines to human remains. The positioning of the ULDs is critical as an incorrect configuration could result in the aircraft struggling to get airborne on the takeoff run.

With the variety of items which could be found in the cargo compartments, aircraft have fire suppression systems in the holds in case a fire should be ignited. This system is powerful enough to allow some aircraft to fly for three hours before landing at a suitable airport.

Featured photo by Darren Murph/The Points Guy
