What Do Runway Numbers Mean?

Jun 10, 2018

This post contains references to products from one or more of our advertisers. We may receive compensation when you click on links to those products. Terms apply to the offers listed on this page. For an explanation of our Advertising Policy, visit this page.

They’re the same square footage of a New York City two-bedroom apartment: the runway designation markings. You’ve seen them before, a curious mix of numbers and letters. Painted on runways worldwide, here’s how they work.

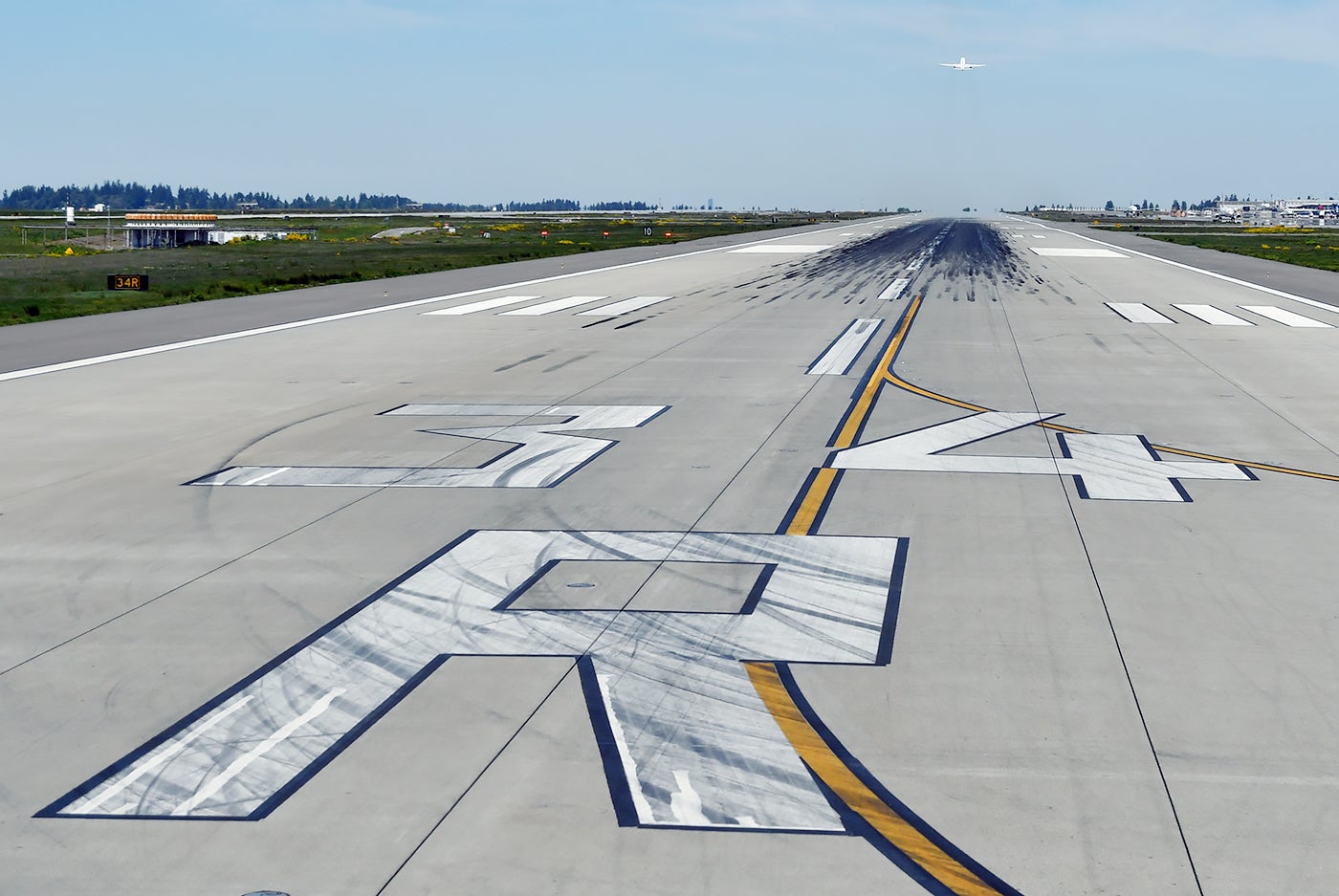

Runway Three-Four Right at Seattle’s Sea-Tac airport. Photo by Alberto Riva / The Points Guy
For simplicity, only a maximum of two numbers are painted on each end of the runway. Take runway 34R, as seen in the photo above. The magnetic heading of the runway is rounded to the nearest tenth of a degree and the third digit is dropped. (Ignore the R for now.) Here, the heading of the centerline could be 342 degrees and the runway will be labeled Runway 34.



A compass, and all 360 degrees of it.

On the compass above, find approximately 342 degrees. Round it to 340 and drop the zero. Extend a line outward from that notch away from the compass, and presto, you’ve drawn runway 34, jetting off to the North-Northwest. It’s the direction from the approach to landing that is painted on the runway.

Any runway— say, runway 4 —could be oriented between 035 degrees and 045 degrees magnetic and still be named Runway 4, departing to the northeast. The giant numbers painted on the runway correspond to the direction the runway points, as indicated on a 360-degree compass. Simple enough. Importantly, this direction—the magnetic heading—is made in reference to magnetic north rather than geographic north (the north used on road maps, for example.) Aviation has long used compasses which require no power, only the earth’s magnetic field. It makes sense then that runways and magnetic headings generally work hand in hand to this day.

A runway will be numbered at both ends, offering two potential directions from which airplanes may depart and land, as decided by Air Traffic Control, which is mindful of the wind and weather at the time. (More about the wind in a moment.)

As you might guess, the numbers are the reciprocals of each other. If there is a giant 19 painted on one end of the runway, there is a giant number 1 painted on the other side. (Just remember that you’re facing outward from the compass.) In the US, our runways omit the leading zero for runway 01, which is not the case in much of the world. So, at London Heathrow (LHR) you’ll spot runway 09L. In the US that would simply be Runway 9L, but each departs to the east.

Why do they face the way they do?

Which direction the runways are built is determined as a part of airport design, where the designers research the prevailing winds—the direction of wind generally speaking—specific to the area. Planes depart and land into the wind in order to maximize lift when taking off and drag while landing, and to minimize ground roll. Wind rushing over the wings provided by Mother Nature is free, unlike anything else in aviation.

Bigly numbers

The numbers painted on the runway are quite large. A single number is 63 feet tall by 20 feet wide in the US. The size is useful for situational awareness; knowing how large they are on the ground, because on every take off the plane rolls over the numbers, gives a good reference for landing and a visual indicator that you are indeed lined up on the assigned runway.

Precise. Image via the FAA.
Precise specifications. Image via the FAA.

Oh Canada

Runway numbers change from time to time. This is because the geographic north pole is some 1,300 miles from magnetic north, which is in Northern Canada and marching off towards Russia at the rate of 30 miles per year, due to changes in the earth’s molten iron core. It makes sense.

Because magnetic north is on the move, airports around the world have to change (infrequently) and repaint the numbers. Oakland (OAK) did this in 2013, and below is an image from an airport in Wales repainting their numbers from 08 to 07.

Repainted numbers at Wales West Airport. Image via Wales West Airport Twitter.
Landing and departing from Runway 07. Repainted numbers at Wales West Airport. Image via Wales West Airport Twitter. It used to be Runway 08.

So putting this into practice…

Below, the pilot of a fictional American Airlines flight, AA139, has lined up on runway 31 at LGA waiting to depart. The pilot can look to the heading on his or her heads-up display or cockpit screen. The plane’s heading will match the assigned runway and its heading.

An attentive reader will note that this runway at LGA could be numbered runway 31 or 32, as the runway is aligned with 315 degrees magnetic.

Heading indicators, as seen from the pilot’s point of view. Here, one plane is lined up ready for departure on Runway 31; the heading indicator shows 315 degrees. We’re lined up correctly, and no, there aren’t that many planes at LGA waiting to go. Image by Author, from Google Maps.

In spoken language, pilots and LaGuardia’s Air Traffic Control Tower will call out each number individually when referencing the runway in use.

LGA Tower will radio:

“American One Three Niner, cleared for takeoff, runway three one.”

One of the pilots on AA139 will read back this instruction in their best pilot’s voice:

“Cleared for takeoff three one, American One Three Niner.”

You’ll note that the air traffic control and pilots don’t say runway “thirty-one”. This is to ensure clarity and safety. (i.e. “Wait, did they say thirty or thirteen?”). And, yes, they will say niner, to distinguish the word from nein in German.

Parallel operations

There are plenty of airports that have parallel runways, and therefore will have an additional identifier, such as L for left or R for right—or less commonly C for center. Van Nuys airport in California for example has runway 16R and 16L, parallel and separated by several hundred feet.

ATL provides an interesting example. Atlanta is the busiest airport in the world, and it has a whopping five parallel runways. In this case, there is a runway 26L and 26R, a runway 27L and 27R, and a runway 28. Each of these runways, however, is oriented to 274.4 degrees magnetic, but are given different runway designations to avoid confusion: they’re simply separated by 10 degrees.

ATL airport diagram, from the FAA. Note in the top right corner the magnetic variation from true north. Also notice 5 parallel runways and their naming. Image via FAA.
ATL airport diagram. Note in the top right corner two arrows to show the magnetic variation from true north. Also notice five parallel runways and their nomenclature. Image via FAA.

And avoiding confusion is really important, as pilots manage a busy workload while flying, and often in less than ideal weather. There are numerous instances of aircraft lining up with the incorrect runway on approach, or departing from the incorrect runway (and sometimes with disastrous consequences.)

Look for the red signs!

Runways are also indicated by illuminated signs on the ground, easily identified because they are white text on a red background. When your plane is taxiing to takeoff, look for them to know the direction you will depart. For example, this image snapped at New York’s JFK airport tells us that the 747 is departing on runway 22R, therefore to the south-southwest. If it was taking off on the same runway but in the other direction, it would be using runway 4L. And, of course, there is a parallel runway 22L / 4R — a few hundred feet away. (The yellow letters on black background next to the runway sign indicate taxiways, but that’s a story for another day.)

A British Airways 747-400 lined up on runway Two-Two Left at JFK. Photo by Alberto Riva / The Points Guy
A British Airways 747-400 lined up on runway Two-Two Right at JFK. Photo by Alberto Riva / The Points Guy

Keeping runway markings precise, and maintaining worldwide standards, is a safety-first approach.

Mike Arnot is the founder of Boarding Pass NYC, a New York-based travel brand, and a pilot.
